x商品の詳細
| 材料 | ステンレス鋼線AISI201、202、301、302、304、304L、321、316、316 L | タイプ | ワイヤーメッシュを織ります |
|---|---|---|---|
| 織りスタイル | プレーンウィーブ | ワイヤーの直径 | 0.025mm-2mm、0.025mm-10mm |
| 使用法 | フィルターストレーナーデミスターパッド | 幅 | 0.5-2M |
| 長さ | カスタマイズ | 特徴 | 耐食性 |
| 応用 | 空気と液体ろ過 | 穴の形 | 不規則 |
| ハイライト | compressed stainless steel wire mesh,knitted wire mesh exhaust supports,stainless steel mesh mounting panels |
||
製品の説明
Compressed Knitted Stainless Steel Wire Mesh Panels Exhaust System Mounting Supports
Product Specifications
| Attribute | Value |
|---|---|
| Material | stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L |
| Type | Weave wire mesh |
| Weave style | Plain weave |
| Wire Diameter | 0.025mm-2mm, 0.025mm-10mm |
| Usage | Filter strainers demister pad |
| Width | 0.5-2m |
| Length | Customized |
| Feature | Corrosion Resistance |
| Application | Air & Liquid Filtration |
| Hole shape | irregular |
Product Description

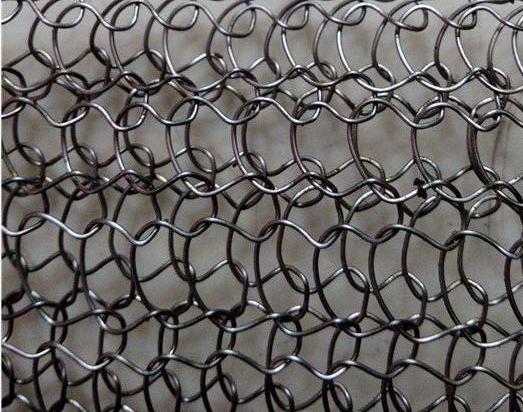

We can compress knitted wire mesh into various forms including cylindrical, round disc, ring, oval, rectangle, bottle-shaped, as well as various other special shapes.
Knitted wire mesh uses different materials, diameters, and compression pressures, resulting in significant variations in the final product. Boegger Industrial Limited produces a wide range of compressed knitted wire mesh.
Material Options
Available in 304, 316, 321, 310, and 310S stainless steel, galvanized steel, aluminum, copper, nickel and copper nickel alloys. Suitable for high temperature applications.
Applications
- Airbag slag filter
- Gas turbine and compressor air inlet/outlet filter
- Automotive, agricultural and marine engine air intake filters
- Separation layer or element of bag dust removal systems
- Coarse dust pre-filter in heating and ventilation systems
- Diesel particulate filters
- Engine crankcase vents elements
- Paint factory outlet filter
- Injector filter
- Oil filter for kitchen equipment
- Air compressor intake filter
- Washing machine outlet pipe lint filter
- Noise attenuation filter in pneumatic tools
- Oil fill cap breathing
- Coal mine/quarry dust filter
- Pre-filter and retain/strengthen core composite filter
- Engines exhaust muffler packing
Technical Specifications
| Type | Mesh quantity and Width | Wire diameter (MM) | Material | Weight (kgs/sqm) |
|---|---|---|---|---|
| Standard | 40-100 | 0.1X0.4 | 1Cr18Ni9 | 1/0.5 |
| Standard | 60-180 | 0.1X0.4 | 1Cr18Ni9 | 1/0.5 |
| Standard | 140-400 | 0.1X0.4 | 1Cr18Ni9 | 1/0.5 |
| Standard | 40-100 | 0.27 | Gal. Lead wire | 1/0.7 |
| Standard | 40-100 | 0.1X0.4 | Copper wire | 1/0.7 |
| Efficient type1 | 60-100 | 0.15 | Polypropylene wire | 1/0.7 |
| Efficient type1 | 70-100 | 0.1X0.3 | Stainless steel wire | 1/0.6 |
| Efficient type2 | 20-160 | 0.1X0.4 | Stainless steel wire | 1/0.4 |
We can weave special sizes according to your requirements.
Key Features
High filtration efficiency
High strength and firm structure
High temperature resistance
Corrosion and rust resistance
Acid and alkali resistance
Will not scratch or mar
Wide range of application
Long service life
