RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 材料 | ステンレス鋼線 | タイプ | ニットワイヤーメッシュ |
|---|---|---|---|
| 応用 | フィルター | 織りスタイル | かぎ針編み |
| 表面形 | 平らなタイプおよび波形のタイプ | ワイヤーの直径 | 0.08mm-0.55mm |
| ハイライト | RFI shielding stainless steel mesh,stainless steel demister wire mesh,knitted filtering screen mesh |
||
製品の説明

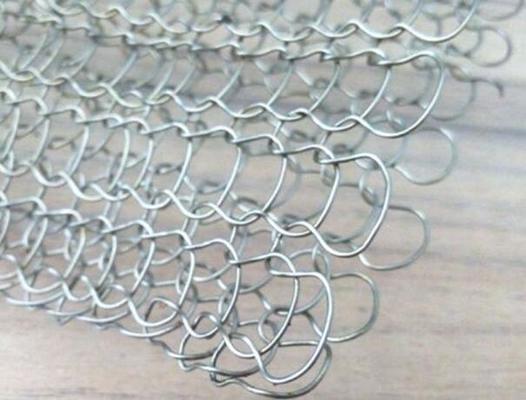

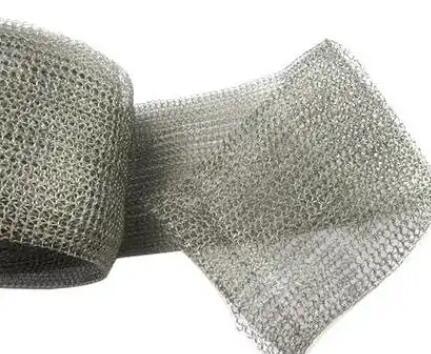

RFI Shielding Knitted Filtering Screen Mesh, Demister Stainless Steel Wire Mesh
Product Attributes
| Attribute | Value |
|---|---|
| Material | Stainless Steel Wire |
| Type | Knitted Wire Mesh |
| Application | Filters |
| Weave Style | Crochet Weaving |
| Surface Shape | Flat type and Corrugated type |
| Wire diameter | 0.08mm-0.55mm |
Product Description
RFI Shielding Knitted Wire Mesh, knitted filtering screen mesh demister stainless steel wire mesh.
Gas-liquid net, broken foam mesh, filters, knitting nets, it is actually based on traditional ways to improve sweater knitting wire mesh. Knitting yarn is generally φ0.08 ~ φ0.50mm of round wire or pressed into a flat, wire diameter ≤φ0.30mm knotted strands can form multi-strand braided wire, but also with the filaments plied knitting.
Features
- Highly efficient
- Long service life
- Heat resistance
- Corrosion resistance
- Abrasion resistance
General Properties
| Origin | Shaanxi |
| Materials | Stainless steel wire, galvanized wire, brass wire, copper wire, etc |
| Aperture size | 2mmx3mm (4mmx5mm) to 12mmx6mm |
| Width | 40,100,150,300,600mm, etc |
| Mesh size | 2mesh-635mesh |
| Weave | Single strand wire, Double strand wire, multi strands wire |
| Wire diameter | 0.10mm-0.55mm |
Knitted Wire Mesh Types
Standard Knitted Wire Mesh
| Typical wire diameter (mm) | Range of natural width (mm) |
|---|---|
| 0.2-0.35 | 30-100 |
| Typical number of stitches per cm on length | Typical number of stitches per cm cross lay flat |
|---|---|
| 0.6 | 1.9 |
High Efficient Knitted Wire Mesh
| Typical wire diameter (mm) | Range of natural width (mm) |
|---|---|
| 0.2-0.35 | 30-550 |
| Typical number of stitches per cm on length | Typical number of stitches per cm cross lay flat |
|---|---|
| 1.6 | 0.74 |
High Penetrated Knitted Wire Mesh
| Typical wire diameter (mm) | Range of natural width (mm) |
|---|---|
| 0.2-0.35 | 30-550 |
| Typical number of stitches per cm on length | Typical number of stitches per cm cross lay flat |
|---|---|
| 0.5 | 0.5 |
Product Details
Standard Knitted Wire Mesh
| Hole (number - width) | Wire size (mm) |
|---|---|
| 40-100 | 0.23 0.25 0.27 0.28 |
| 60-180 | 0.23 0.25 0.27 0.28 |
| 140-400 | 0.1-0.4 |
High Efficient Knitted Wire Mesh
| Hole (number - width) | Wire size (mm) |
|---|---|
| 70-100 | 0.23 0.25 0.28 |
| 80-100 | 0.1-0.3 |
| 90-100 | 0.1-0.3 |
High Penetrated Knitted Wire Mesh
| Hole (number - width) | Wire size (mm) |
|---|---|
| 20-160 | 0.15 0.23 0.28 |
| 20-150 | 0.15 0.23 0.28 |
| 70-400 | 0.15 0.23 0.28 |
Anping Qianpu Wire Mesh Products Co., Ltd. is a manufacturer and exporter of stainless steel wire mesh products. We are located in the wire mesh industrial base Anping city, Hebei province in China.
Our Product Range
- Stainless steel woven wire mesh
- Welded wire mesh
- Crimped wire mesh
- Hexagonal wire mesh
- Knitted wire mesh
- Wire mesh filter
- Window screen
We have been manufacturing and exporting wire mesh products for 15 years. Our professional, responsible attitude and strictly managed techniques ensure we maintain a leading position in the wire mesh industry. We welcome your enquiry.
For Quotation Requests
To make an offer, please provide us with the following wire mesh specification information:
- Material
- Wire diameter
- Mesh size
- Wire mesh length
- Wire mesh width
If possible, please also provide us with the weight per roll that you require.
