Lock Crimped Steel Wire Mesh Vibrating Wire Screen Stainless Steel 1-10mm Wire Gauge
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 材料 | 鋼鉄の電圧線 鋼鉄の鋼鉄線 | 技術 | 織り 折りたたみ |
|---|---|---|---|
| 織りスタイル | プレーン圧着/フラットトップ圧着 | ワイヤーゲージ | 1-10mm |
| ロールサイズ | 1mx30m, 1.22mx30m, 1.5mx30m オーケー,これはどうする? | ワイヤーの直径 | 0.71mm～12.7mm |
| サンプル | 利用可能 | 使用法 | ミネラル、振動スクリーン |
| ハイライト | stainless steel crimped wire mesh,vibrating wire screen mesh,lock crimped steel wire mesh |
||
製品の説明

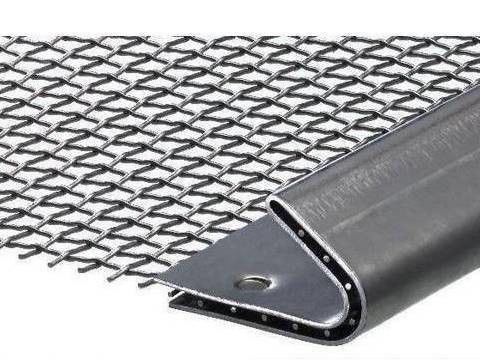

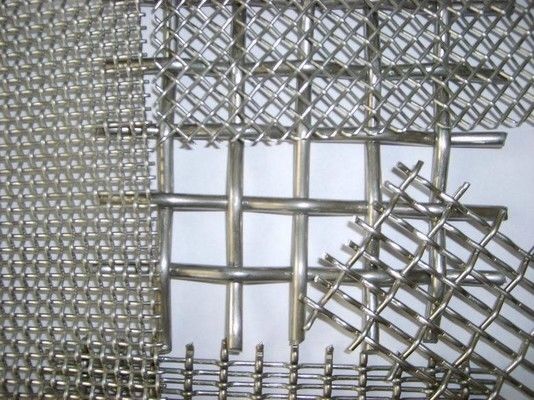

Lock Crimped Steel Wire Mesh Vibrating Wire Screen Stainless Steel 1-10mm Wire Gauge
Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.
|
Name
|
Vibrating Screen Mesh
|
|
High carbon steel:
|
65Mn,45#,50#,55#,60#,70#,,72A
|
|
Wire diameter
|
0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .
|
|
Aperture/Opening
|
2mm to 100mm,tolerance +-3%
|
Weaving style:
Plain weave Double crimped Intermediate crimped Flat top crimped
| Wire Gauge(SWG) | Wire Diameter( mm) | Mesh/Inch | Aperture(mm) | Weight(kg) |
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5.0 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |
Stainless steel crimped wire mesh features:
- Great strength and solid structure;
- Good rust and corrosion resistance;
- High loading capacity;
- Long service life;
- Beautiful surface.
Stainless steel crimped wire mesh applications:
- Serves as vibrating screen, filter element, infill panel, barbecue grill, baking rack;
- Used in mining, chemical, petroleum, construction industries;
- Designed into decoration, artwork.
About our company
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
