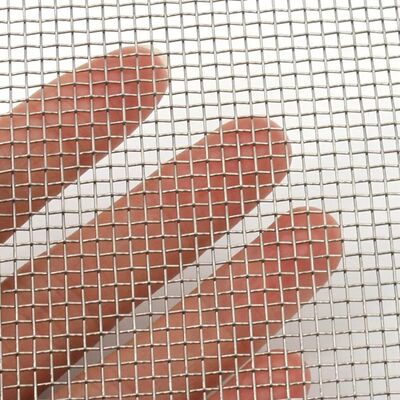

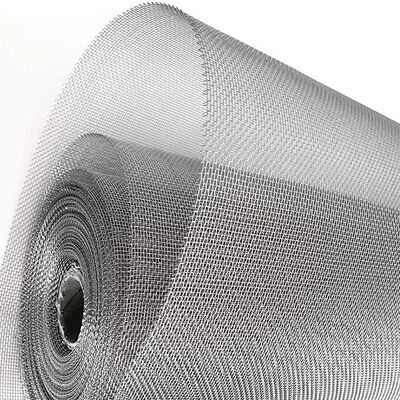

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
商品の詳細
| 材料 | SS304、SS304L、SS316、SS316L | 織りタイプ | 平織り / 綾織り / ダッチ織り |
|---|---|---|---|
| 線径 | 0.15mm～2.0mm | メッシュカウント | 2～400メッシュ |
| 開口部のサイズ | 0.038mm～10mm | 表面処理 | 光輝焼鈍/酸洗不動態化 |
| 標準サイズ | 1m×30mロール（カスタマイズ可能） | 応用 | 食品および飲料の濾過、医薬品ふるい、工業用フィルター、建設用フェンス、防犯窓ガード |
| ハイライト | food grade stainless steel wire mesh,304/316 stainless steel filtration mesh,woven wire mesh for fencing |
||
製品の説明
Plain Dutch Weave has a specialized structure with larger warp wires than weft wires. It is woven by interlacing a few warp wires with tightly packed weft wires, forming a dense mesh with invisible apertures. Its plain pattern ensures even wire distribution, resulting in a smooth, easy-to-clean surface.
Twill Dutch Weave has an upgraded structure, also with larger warp wires than weft wires. Tightly packed weft wires are woven in a twill pattern (each weft passes over two warp wires and under one, or vice versa), creating a dense mesh with subtle diagonal textures, enhanced rigidity and wear resistance.
- *Material*: SS304 / SS304L / SS316 / SS316L
- *Weaving Type*: Plain Weave / Twill Weave / Dutch Weave
- *Weaving Type*: Plain Weave / Twill Weave / Dutch Weave
Main Applications
Our stainless steel woven wire mesh is widely used in:
- *Food & Beverage*: Bakery equipment, beverage filtration, food processing machinery
- *Pharmaceutical*: Medicine sieving, clean room filtration, pharmaceutical machinery components
- *Construction*: Concrete reinforcement, building facades, security window guards
- *Industrial & Security*: Machine guards, liquid filtration, mine sieving, pet enclosures

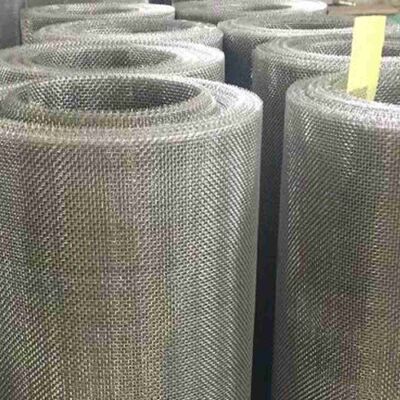

Packing:
In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.
