0.35mmx0.25mm SS304 Stainless Steel Wire Mesh 0.35mmx0.25mm
商品の詳細
| 製品名 | ステンレス鋼オランダ金網 24 x 110 | 材料 | ステンレス鋼304、316 |
|---|---|---|---|
| 織物タイプ | オランダの織り方 | メッシュカウント | 24×110 |
| 線径 | 0.35mm×0.25mm | 幅 | 0.5mから2m |
| 長さ | 30メートル | 応用 | 産業ろ過 |
| ハイライト | SS304 stainless steel wire mesh,0.35mmx0.25mm wire mesh,stainless steel Dutch wire mesh |
||
製品の説明
The structure of Dutch woven cloth has different mesh counts in weft and warp direction. Suitable match of wire dia. and mesh count can realize the filtration density that are unrealizable for square mesh. Common dutch woven wire cloth has more weft wires than warp wires, and the warp wire dia. is usually bigger than that of the warp wires; Due to its unique structure and weave pattern, dutch woven wire cloth is more used in fine filtration than normal s.s. square mesh.Present densest dutch woven cloth can have the mesh opening size as small as 3 microns.So we also call dutch woven mesh micron-grade filter cloth.
Plain Dutch weave: woven as a plain weave. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.
Plain Dutch Weave Spections:
| Mesh | Wire Diameter mm | Filtration Fineness um | Weight / m2 kg |
| 8x62 | 0.63x0.45 | 300 | 5.42 |
| 10x79 | 0.50x0.35 | 250 | 3.16 |
| 12x64 | 0.50x0.40 | 280 | 3.2 |
| 14x88 | 0.40x0.30 | 220 | 2.5 |
| 15x100 | 0.40x0.27 | 210 | 2.35 |
| 20x120 | 0.30x0.23 | 160 | 1.9 |

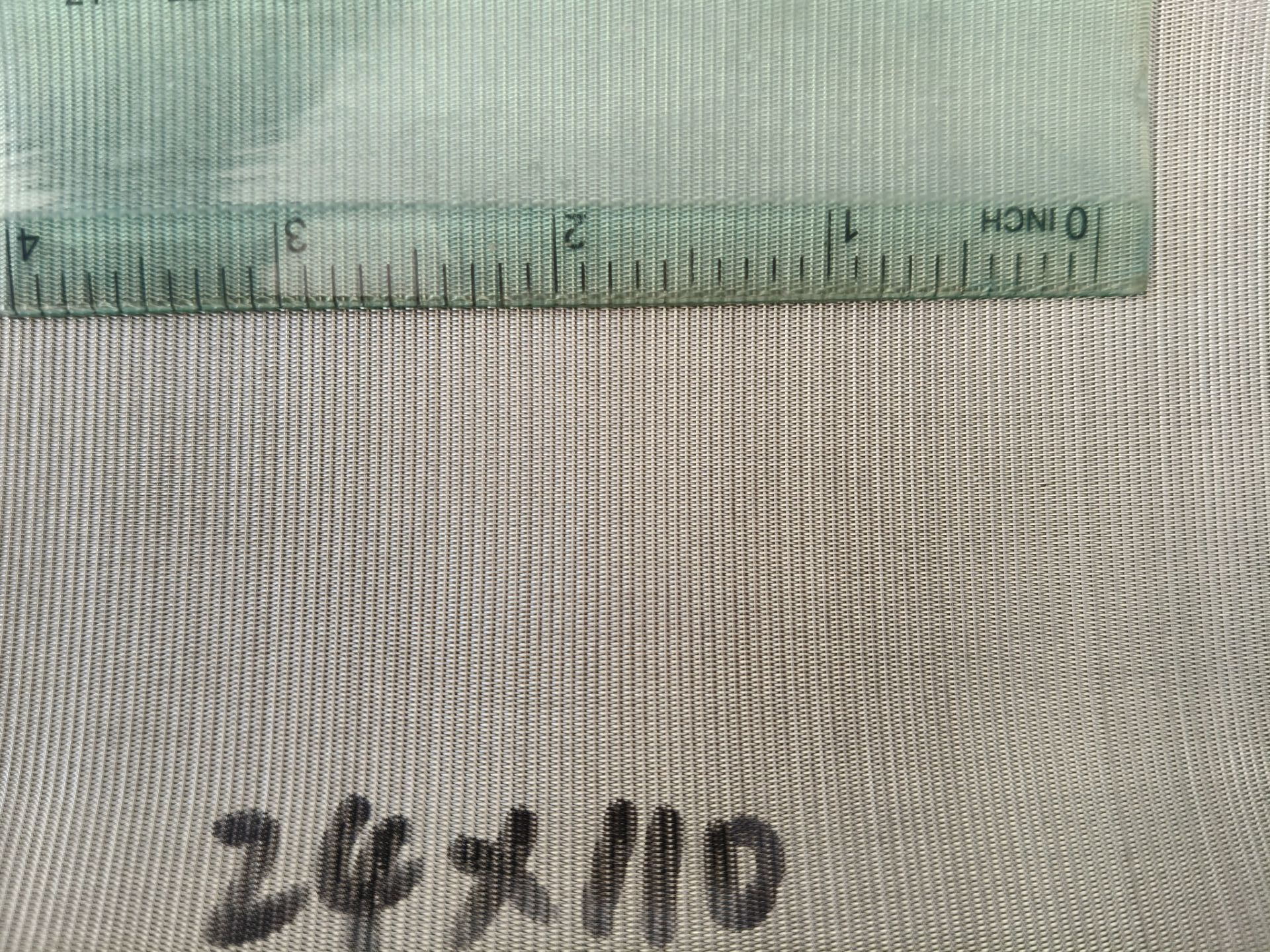

| 24x110 | 0.35x0.25 | 150 | 2.35 |
| 24x140 | 0.27x0.19 | 110 | 1.7 |
| 30x150 | 0.25x0.17 | 80 | 1.55 |
| 30x180 | 0.25x0.15 | 70 | 1.4 |
| 40x200 | 0.19x0.13 | 60 | 1.2 |
| 50x250 | 0.15x0.11 | 50 | 0.95 |
| 60x300 | 0.13x0.09 | 45 | 0.75 |
| 70x350 | 0.12x0.08 | 35 | 0.7 |
| 80x400 | 0.12x0.07 | 34 | 0.7 |
| 70x500 | 0.12x0.06 | 32 | 0.65 |
| 100x600 | 0.10x0.05 | 30 | 0.6 |
Dutch twilled weave Specifications:
| Mesh | Wire Diameter mm | Filtration Fineness um |
Weight
(kg/sq.m)
|
| 20x200 | 0.335x0.28 | 118 | 4.58 |
| 20x260 | 0.25x0.20 | 119 | 3.14 |
| 24x300 | 0.28x0.18 | 110 | 3.01 |
| 30x250 | 0.28x0.20 | 77 | 3.41 |
| 30x340 | 0.28x0.16 | 89 | 2.84 |
| 40x560 | 0.18x0.10 | 70 | 1.73 |
| 80x700 | 0.12x0.08 | 30 | 1.26 |
| 80x780 | 0.12x0.07 | 28 | 1.22 |
| 90x780 | 0.10x0.07 | 26 | 1.24 |
| 100x780 | 0.10x0.07 | 25 | 1.13 |
| 120x1100 | 0.07x0.05 | 18 | 0.86 |
| 165x800 | 0.07x0.05 | 25 | 0.58 |
| 165x1400 | 0.07x0.04 | 14 | 0.75 |
| 200x600 | 0.06x0.04 | 28 | 0.5 |
| 200x1400 | 0.06x0.04 | 12 | 0.72 |
| 200x1600 | 0.06x0.035 | 11 | 0.7 |
| 200x1800 | 0.06x0.03 | 10 | 0.7 |
| 250x2000 | 0.045x0.028 | 8 | 0.65 |
| 325x2300 | 0.035x0.026 | 5 | 0.57 |
| 325x2500 | 0.035x0.023 | 4 | 0.52 |
| 400x2800 | 0.03x0.018 | 3 | 0.46 |
| 400x3000 | 0.03x0.16 | 2. | 0.43 |
| 400x3500 | 0.03x0.15 | 1 |
0.38
|
Materials:
304,304L,316,316L Stainless steel wire, Nickel wire, Brass wire, Low-Carbon Steel wire and Special Alloy wire.
Property:
This kind of woven wire mesh offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance.
Usage:
Dutch Woven Wire Cloth are extensively utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units, due to its stable and fine filtration capability.
