120×110 Mesh Plain Weave 201 302 SS Woven Wire Mesh
商品の詳細
| 製品名 | SS 織布線網 | ステンレス鋼 | 200、300の400のシリーズ |
|---|---|---|---|
| 表面 | 明るい銀色 | 絞り形状 | 長方形の絞り |
| メッシュカウント | 120*110など | 線径 | 0.08mmなど |

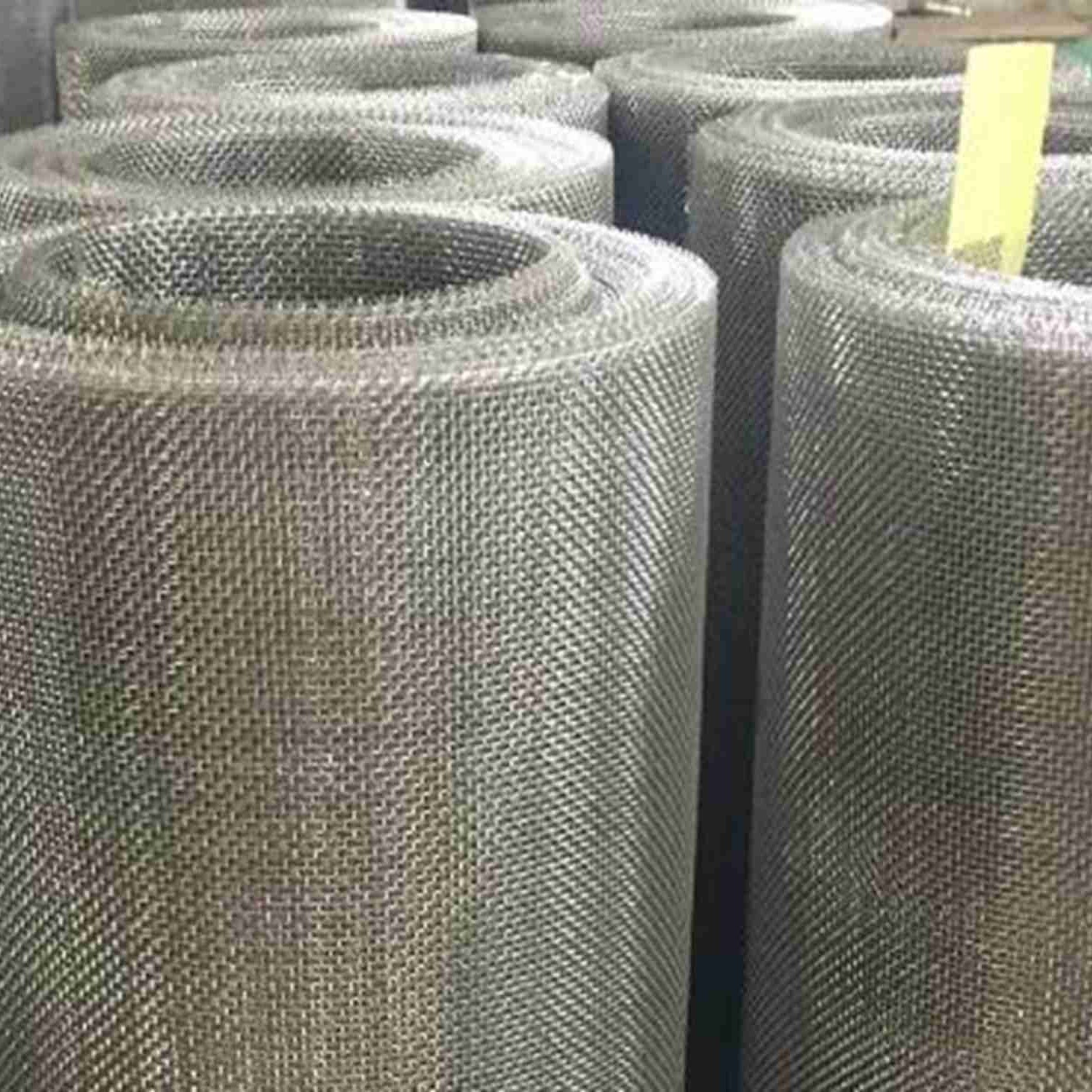

| ロール幅 | カスタマイズされた | 標準長さ | カスタマイズされた |
| Properity | 反錆 | 応用 | 濾過 |
| ハイライト | 201 stainless steel woven wire mesh,302 stainless steel wire mesh,120x110 plain weave wire mesh |
||
製品の説明

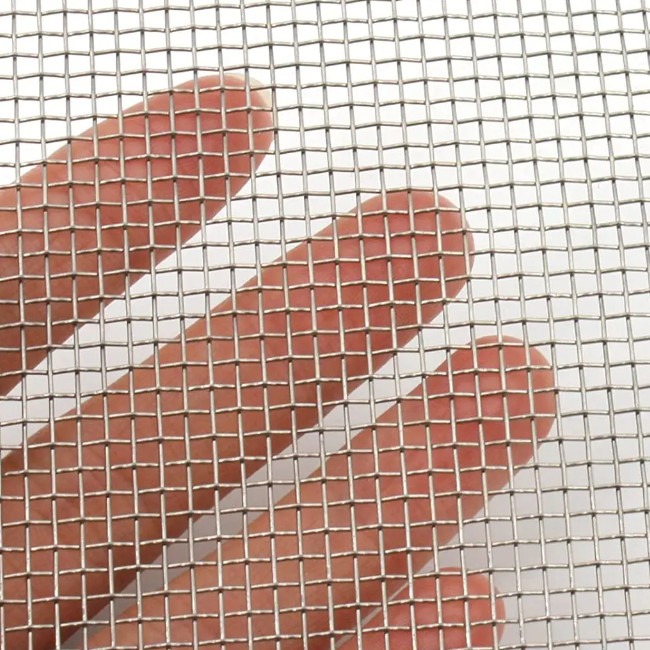

Rectangle Aperture Wire Mesh Introductioin
The Plain Wire Cloth Weave is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloths are not crimped before weaving, and each warp wire passes over / under the wires running through the cloth at 90 degree angles.
Warp and weft wire diameters are generally the same, sizes of aperture are not the same . Used for the majority of commercial applications and for filtration where a high flow rate is required.
Standard Specifications:
|
Mesh Counts Warp×weft |
Wire Diameter(mm) |
Apertures(mm) Warp×weft |
| 120×110 | 0.08 | 0.13×0.17 |
| 110×100 | 0.09 | 0.14×0.16 |
| 100×90 | 0.10 | 0.15×0.18 |
| 90×80 | 0.10 | 0.18×0.15 |
| 80×70 | 0.12 | 0.20×0.24 |
| 70×60 | 0.15 | 0.21×0.27 |
| 60×50 | 0.18 | 0.24×0.33 |
| 30×26 | 0.34 | 0.51×0.64 |
| … | … | … |
Other specifications according to your requirements.
Materials:
200 series : 201, 202, 205
300 series : 301, 302, 304, 304L, 309, 309S, 310, 310S, 316, 316L, 321
400 series : 410, 420, 430
" " means most common stainless steel grade.
Copper alloy, aluminum alloy, nickel alloy, carbon steel... are available.
Features:
High abrasion resistance – longer life;
Resistance to chemical and atmospheric corrosion;
Mechanical strength unaffected by high heat;
Easily cleaned and ideal for food industry, etc.
Applications:
Used in mining, petroleum, chemical, food, medicine, machinery manufacturing another industries.
Used in conditions of acid, alkali environment for screening and filter, oil industry as mud nets,
chemical fiber industry, as a sieve mesh, insect screen for window/doors, plating industry as pickling nets. Our factory can design and product various types of products according to uyour needs.
Simple Drawing of Rectangle Hole
